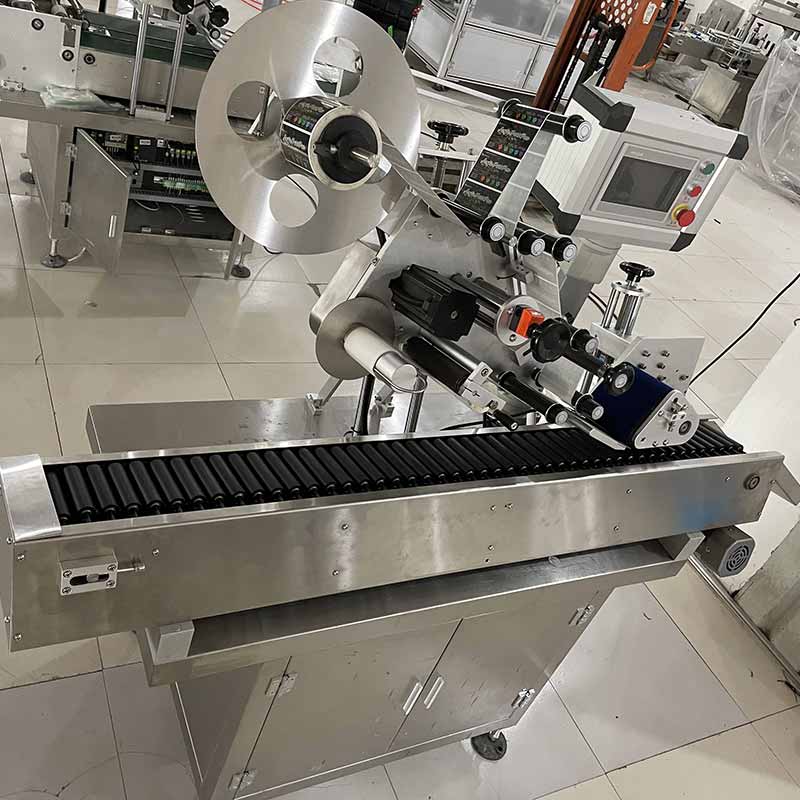

SN-LB258 HIGH SPEED HORIZONTAL VIAL LABELING MACHINE for oral solution

Suitable for food industry, chemical industry, Commodity industry, pharmaceutical industry and other packaging.(bottle, drink,Laundry Detergent,ketchup,carton,vial,cosmetics,oral solution,crayon,pen,shampoo, liquid soap)

Feature:

Be suitable for round bottle

with auger separating system, guarantee the exact distance of bottle

with vertical level di rection for conveying bottles stably operate conveni ently

Label synch ronous position system,error is ±0.5mm

the rate of bottle damaged is less than 1/10,000.


Servo motor, featuring in high speed and fire stab zation

the bottle feeding-toppiong unit feeds horizontallyy.

compared with those with vertical feeder of other factories.

it is safer and more convenient and the bottle breakage has reduced to 1/10,000.ten times less than those of other manufacturers.

exclusive bottle separator with screw and featuring in stab zation










Model LB258
Packaging Range Ф 15 - Ф30 diameter  Length 25-120mm
Label size width 20-90mm length 25-100mm
Maximum diameter of label Ф 42mm ,inner diameter:76mm
label distance 3mm
labeling precision ±0.5mm(except the error of the labeled object and labels)
Power supply AC220V 1.5Kw 50/60HZ
Overall Size 3200*1800*1500mm
