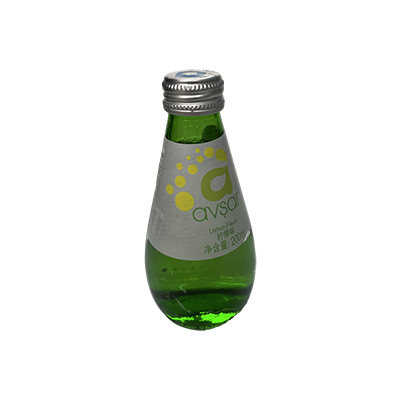

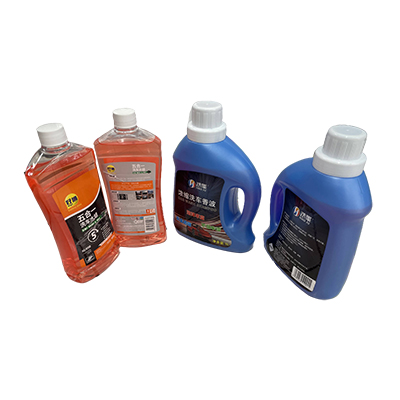

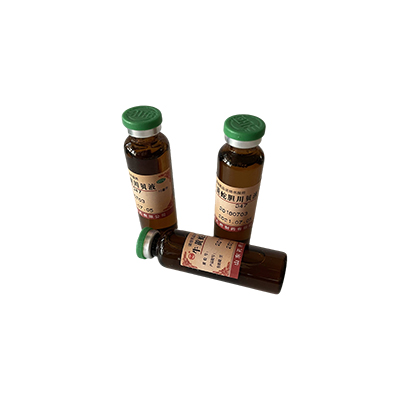

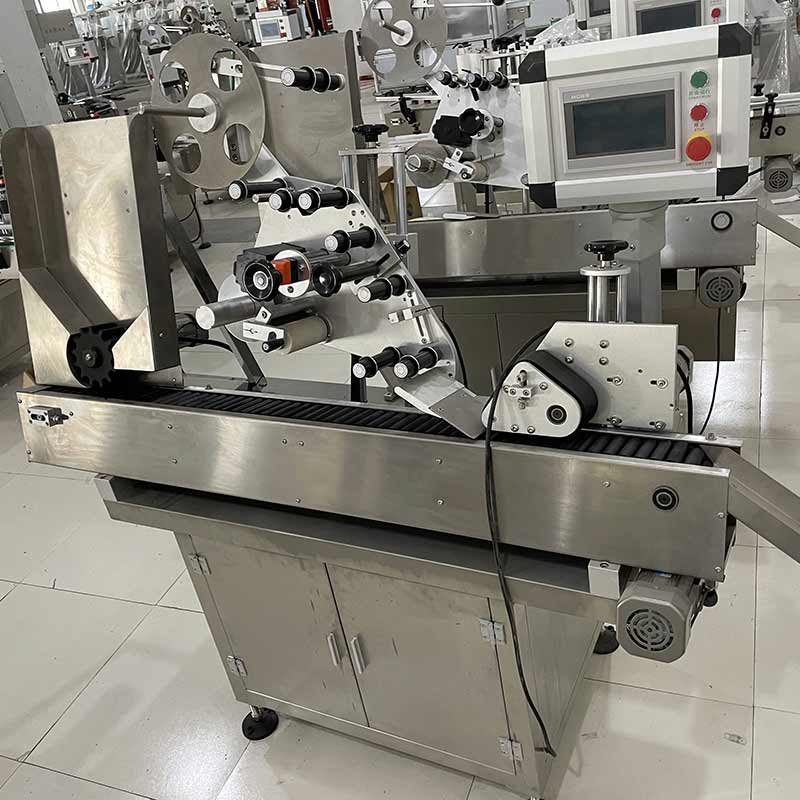

LB158 model Horizontal type bottle Labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.

Working Principle

Put the ampoule into the ampoule hopper, the hopper will transport the ampoule to labeling station. There is automatic sensor equipped on the machine will sense the passed ampoule and feedback to PLC. The PLC gets the signal, then feedback to Step Motor, the step motor supplies the Label to Rotation Pressing Roller which makes the labeling process.

Features

The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)

PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.

The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.

The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.

Whole body stainless steel 304 with  Aluminum Alloy meets GMP Standard.

The position of height and backwards or forwards are adjustable.
