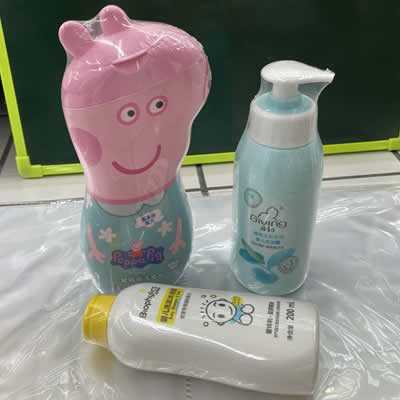

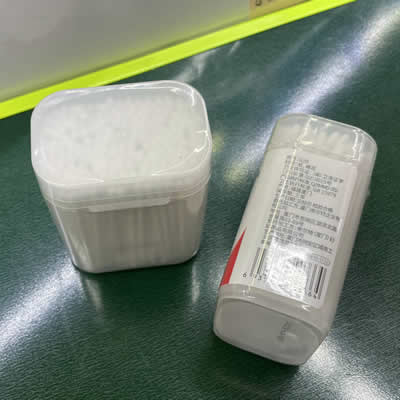

Suitable for food industry, chemical industry, Commodity industry, pharmaceutical industry and other packaging.(soap,hardware, bearing,INSTANT NOODLES ,COSMETICS,brushtooth,PERFUME,drink,toy,body lotion ,body wash, )
Application:

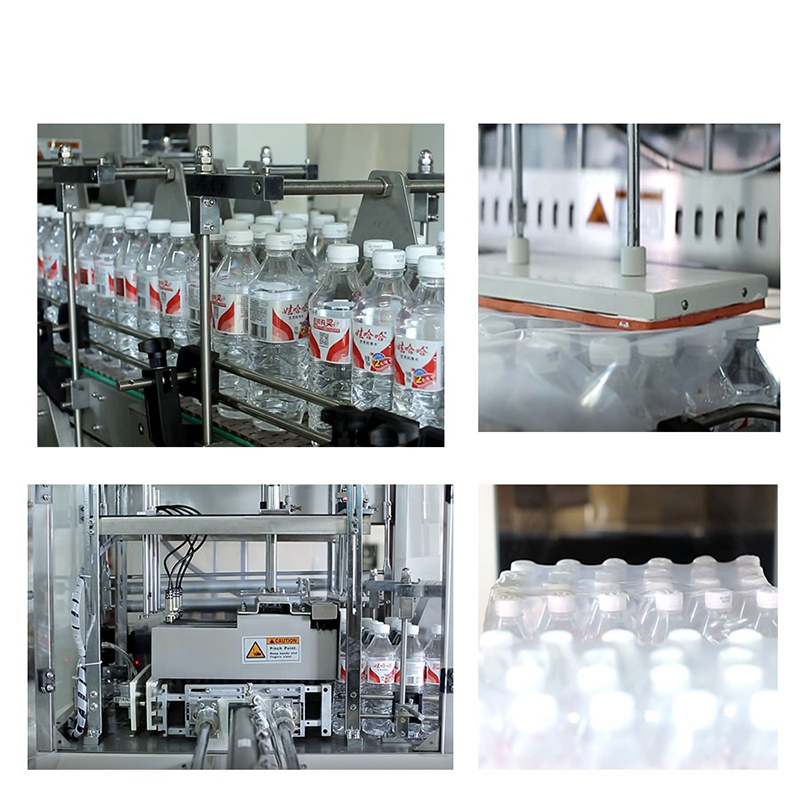

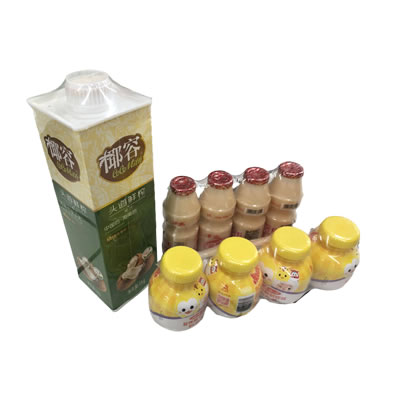

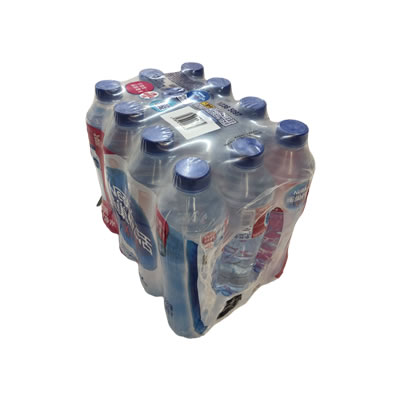

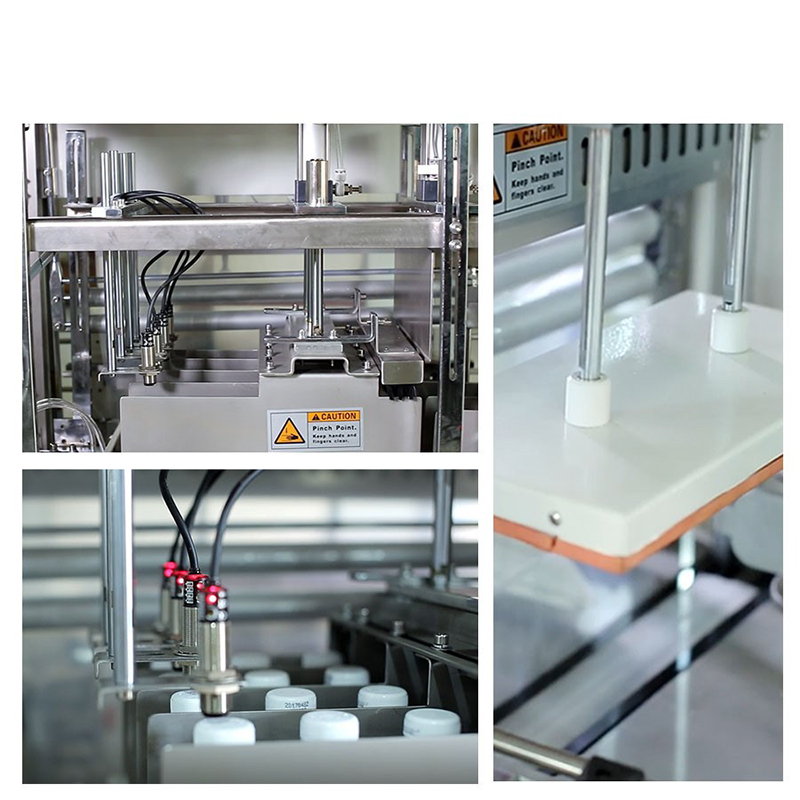

This automatic bottle packing shrink sleeve wrapping machine is suitable for wrapping pop-cans, mineral water, bottles beer, drinks, etc, with bottom-tray or without bottom-tray, working with SN-5040A jet PE-film shrink tunnel or other PE shrink tunne
Feature:
> Double size fan carrying system ensur the perfect of sealing.
> Imported AC contractor, the temperature be controlled by automatic.
> Imported frequency converter, stepless speed regulating.
> Super cooling system to ensure the perfect shape of products quickly ofter shrinking.
> The control panel be operated with safe and simple.
> The imputing position can be adjustable precision base on the size of products.
> Up and down large power fan system to assure the excellent effect of shrinking in onetime.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Main technical parameter
Model | SN-5040B |
Power | 2kw |
Conveyer speed | 0-10/min |
Packing speed | 0~8pcs/min |
Pushing board loading | 20kg |
Weight of film roller | ≤30kg |
Working pressure | 0.4-0.6 Mpa |
Power source | AC220~380V/50~60Hz/3PH |
Max. packing size | 420(L)×300(W)×350(H)mm |
Min. packing size | 250(L)×50(W)×100(H)mm |
Front conveyor | 900(L)×410(W)×400(H)mm |
Motor loading | 50 kg |
Model | 5040A heater shrink |
Power supply | 3phase 220V/380V 50-60HZ |
Heater power | 20KW Adjuster |
Conveyer speed | 0-10m/minute |
Tunnel size(L*W*H) | 1500*500*460MM |
Conveyer loading | 30KGS MAX. |
Machine size | 2500*820*1680MM |
Machine weight | 470KG |
