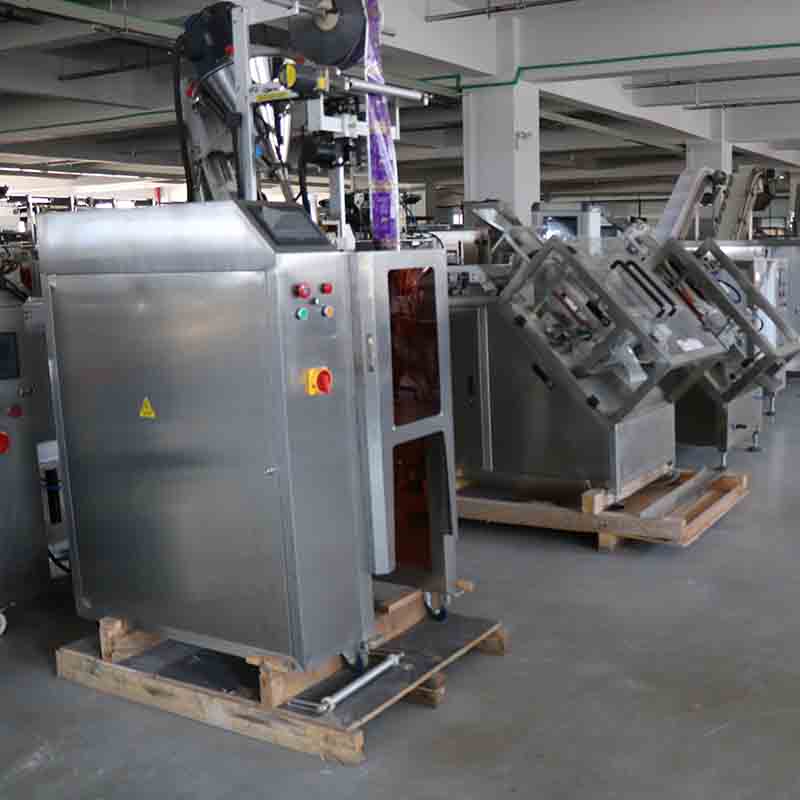

SN-G400 AUTOMATIC OATMEAL CEREAL PACKING MACHINE

Suitable for food industry, chemical industry, Commodity industry, pharmaceutical industry and other packaging.(MICROWAVE POPCORN,NUTS, CANDY ,OATMEAL CEREAL ,SNACK,SUGAR ,RICE,COFFEE BEAN,BEAN,PEANUT,SALT,CHIPS,RAISINS)

Application:

Type of packing all kinds of powder:spice/milk /chili /herb /detergent /flour/coffee /medicine cosmetic/chemical /ginger/tapioca /turmeric powder, starch etc.

Type of packing all kinds of grains and solids: frozen dumpling, meat, dates, candy, nuts, pet food, tobacco, raisins, seeds, cereal, fruit, potato chips, chocolate, bread, biscuits, cakes, expanded food and bulk food etc.

Type of packing all kinds of liquid: milk, soymilk, soy sauce, ketchup, water, juice, chili sauce, detergent liquid, cream, shampoo, oil,jam yoghurt etc.

Kinds of Premade Pouches

Stand up pouches, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch etc.


Main Features

1. Easy to operate. The machine with  PLC control, man-machine interface with touch screen control system, it can be operate easily.

2. Frequency control. The machine with frequency control, the required speed can be adjustable within the range according to any needs of reality in production.

3. Automatic detection. No pouch or pouch is not opened completely, no feeding, no sealing, pouch can be reused, avoid wasting materials, it can reduce production costs for user.

4. Safety devices, when the abnormal pressure of work or failure of heating pipe, it will alarm.

6. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.

7. Part of plastic bearings are imported, no oil, reduce pollution materials.

8. Use no oil vacuum pump, avoid polluting the environment in the production.




































Please select the style of packag you need, or provide a sample of your package
Model G400
Bag Size Width:80-210/200-300mm, Length:100-300/100-350mm
Filling Volume 5-2500g (Depending on type of products)
Capacity 30-60bags/min (The speed depends on type of products and packaging material used)
25-45bags/min (For zipper bag)
Package Accuracy Error≤±1%
Total Power 2.5KW (220V/380V,3PH,50HZ)
Demension 1710*1505*1640 (L*W*H)
Weight 1480KGS
Compress Air Requirement 0.8m³/min supply by user
