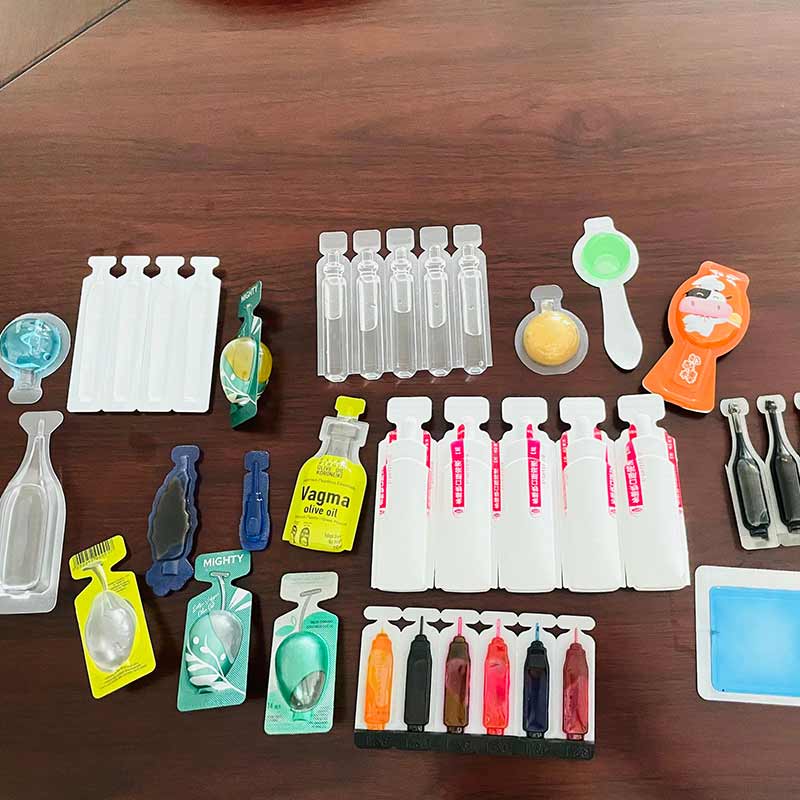

Suitable for food industry, chemical industry, Commodity industry, pharmaceutical industry and other packaging.(OLIVE OIL ,ELECTRONIC CIGARETTES LIQUID,COSMETICS,PESTICIDE LIQUID,AGRICULTURAL CHEMICAL liquid,MOUTHWASH,DRUG LIQUID,ORAL SOLUTION ,honey,ketchup,perfume,food,JUICE,BODY LOTION,LIQUID SOAP)
Application:
This machine is use for liquid product packing , such as pharm liquid , syrup , drinking liquid;cosmetic lotion , hair dye shampoo,cream ,essential oil;food honey , ketchup,jam , chocolate cream ,olive oil, soy sauce , garlic sauce ;agricultural chemical pesticide liquid, fertilizer liquid, plant use liquid etc.
1, PLC control, steeples frequency conversion adjustment.
2, Full Automatic plastic molding, filling, batch number, cut the tail, cutting,
3, man-machine interface device, the operation is simple and clear.
4, filling head does not drip, no bubble, no overflow.
5, and related parts in contact with the liquid are all made of high quality stainless steel material, conform to GMP standard.
6, main pneumatic components, electrical appliances imported accessories.
7, electronic peristaltic pump control filling system and mechanical filling two kinds, accurate measurement error is small
![]() |
![]() |
![]() |
Main technological parameter:
Model | GGS-120 P5 |
Max Forming depth | 12mm(OEM Design) |
Cutting Frequency | 1-25times/min |
Packing Film | PVC/PE.PET/PE(0.2-0.4)*140mm |
Filling volume | 1-50ml |
Power | 7KW |
Power Supply | 220-380V50Hz(OEM) |
Machine Weigh | 900kgs |
Machine Weigh |
2300*850*1400mm |
