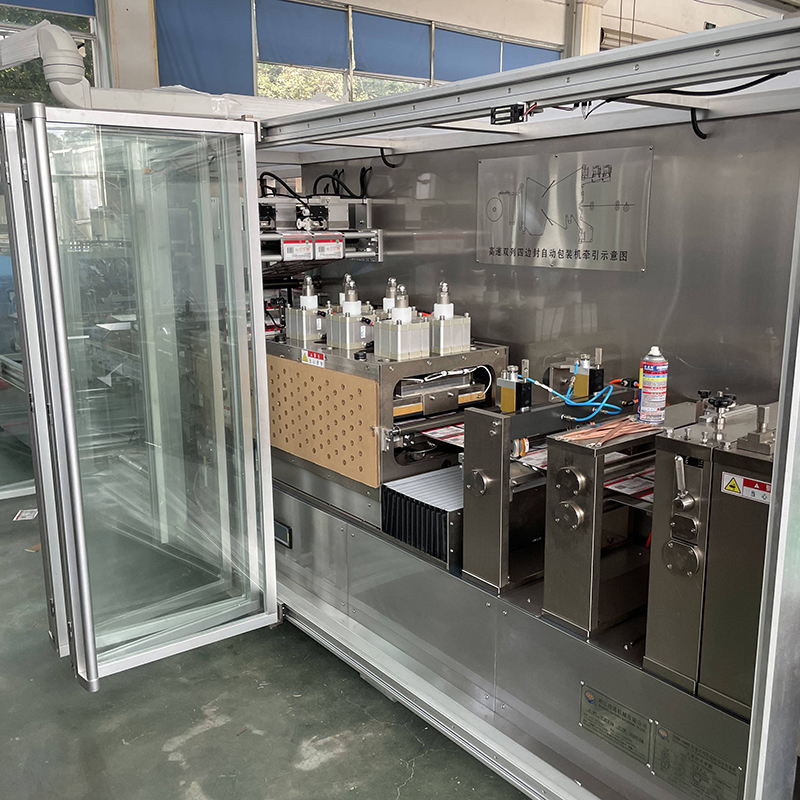

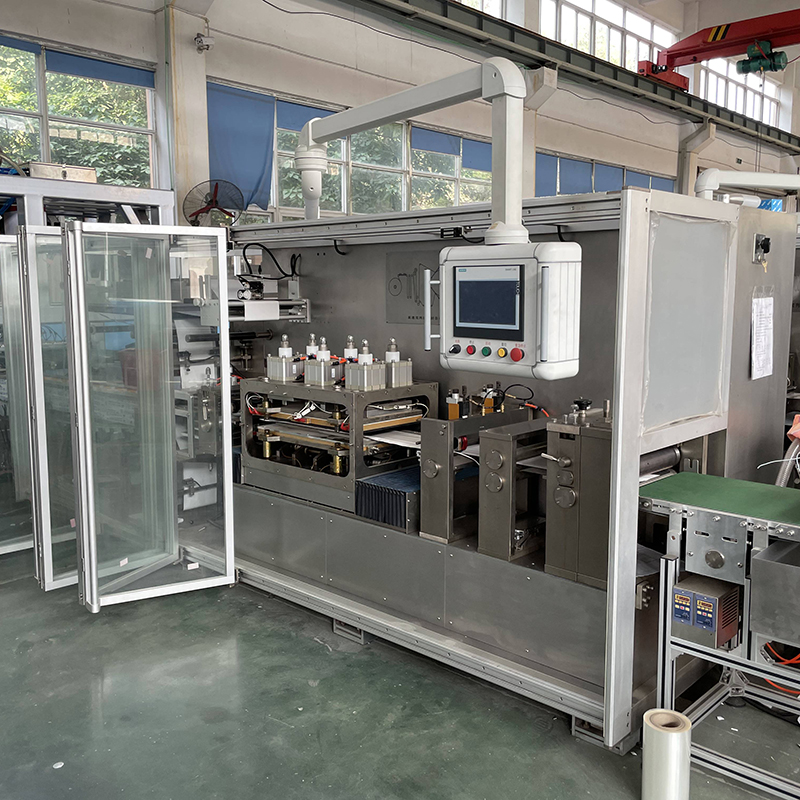

AUTOMATIC FOUR SIDE SEALING MEDICATED PLASTER PACKAGING MACHINE

Suitable for food industry, chemical industry, Commodity industry, pharmaceutical industry and other packaging.( EYE MASK PAIN RELIEF PATCH ,face mask,condom,pregnancy test)

Features:

1.Touch screen control optrol operation simple.

2.Reciprocating heat sealing,the standard size plaster one time can be heat sealed 10bags,sealing flat,firm and beautiful.

3.packaging film tape joint automatic detection and rejection

4.hot code machine missing printing automatic detection and rejection.

5.Missing blister automatic detection and rejection

6.package film used out alarm and shutdown.

7.suitable for a veriety of specifications plaster can be equipped with 1-5piece automatic feeding.

8.Ethernet remote control, can modify the program.




Main technical parameter

Production capacity: 120-300bags/min
packing film max diameter: Φ500m  max width:820mm
packing size: L:60-150MM, W:60-200MM,H:1-6MM
Air compressed: 0.3m³/min
Air pressure: 0.5-0.7mpa
Rated voltage: AC 380V/220V 50/60Hz
Total power: 23.5kw
Weight: 5000kg
Overall dimension: 6500*2260*2155 (L*W*H)
