SN-SL480 AUTOMATIC INTELLIGENCE FILLING COUNTING AND LABELER PRODUCTION LINE

Suitable for food industry, chemical industry, Commodity industry, pharmaceutical industry and other packaging.(candy,capsule,tablet,pill,pet food,hardware,nuts,olive,milk tablet)

Main Features:

1 - The whole line is fully compatible with solid preparations such as tablets (including shaped tablets), capsules, soft capsules (transparent, opaque) pills, or solid particles (such as candy, nuts, preserves, etc.).

2 - The high degree of intelligence: Every single machine adopts Chinese and English control panels and has several self-checking alarm functions. The whole line is well-connected and runs smoothly.

3 - It is high efficiency, easy to operate, easy to adjust, easy to clean, easy to maintain, low operating cost, low maintenance cost.

4 - Each machine can do its work independently, with a separate operating system. Multi-machine linkage, fast separation, fast adjustment, so that the various processes in production can ensure coordination.

5 - It features a small footprint, low energy consumption.

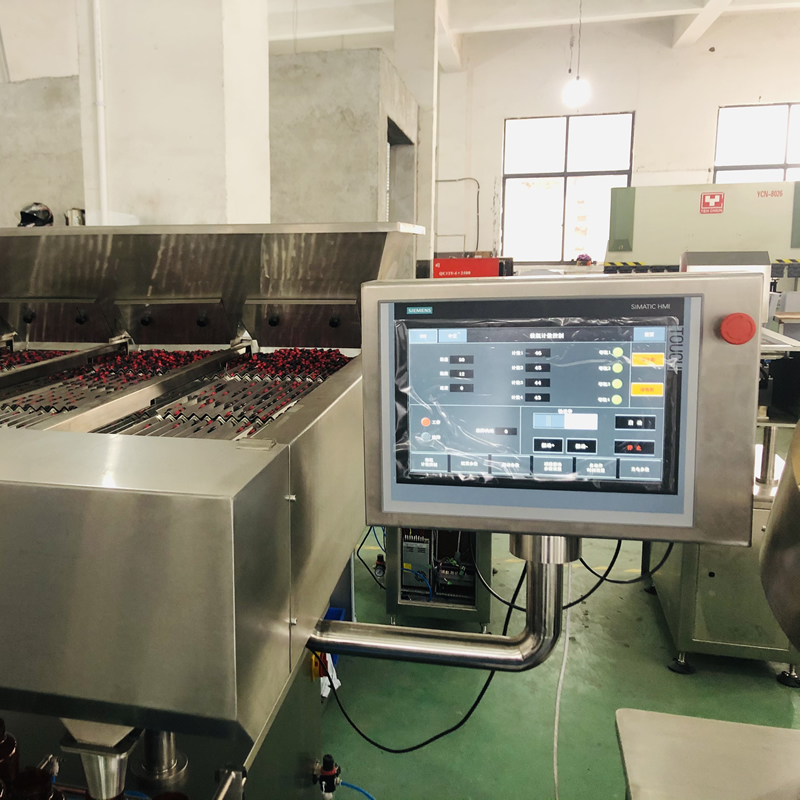

6 - It adopts the man-machine interface control panel and PLC control system, which is easy and convenient to operate.

7 - Anti-dust technology enables the machine to operate stably in high dust environments.















Bottle Turn Table

1. Applicable specification 5-1000ml
2. Production capacity 20-100 bots/min
3. Voltage 220v/50HZ
4. Power 0.2kw
5. Weight 120kg
6. Dimension 900*900*1040mm

Counting Machine:

Application 1. Filled capsule(00-5#)
2. Soft Gelatin capsule
3. chewing gum
4. tablet
5. other solid object under machine range
Hopper Volume 85L
Capacity 80-110bottles/min
Filling Quantity 2-9999pcs/bottle (adjustable)
Bottle Size Diameter: 30-75mm
Height:40-250mm
Counting Size Thickness: 3-10mm
Diameter: 3-22mm
Length: 3-30mm
Compressed air 0.6Mpa   5L/min
Machine Weight 900KG
Machine Size L × W × H (mm) 2160*1530*1700mm

Capping Machine

Size of bottles 20-500 ml
Output 10-100 bottles/min
Diameter of caps φ20-65 mm
Diameter of bottles φ20-120 mm
Power supply 220V 50Hz
Power 1.8KW
Overall dimensions 2280*1080*1940 mm
Weight 510KG

Desiccant Inserting Machine

Bottle Size 20-300ml
Output 10-70bottles/min
Power Supply 220v50Hz
Power 0.5kw
Overall Dimension 1360*750*1950mm

labeling machine

1. Labeling speed 50-120 bottle/min
2. Bottle diameter 30-100mm
3. Label size mas. height 180mm
4. Power 0.2kw
5. Voltage 220V/50Hz
6. Weight 300kg
7. Diameter 1850*730*1400mm
