Application:

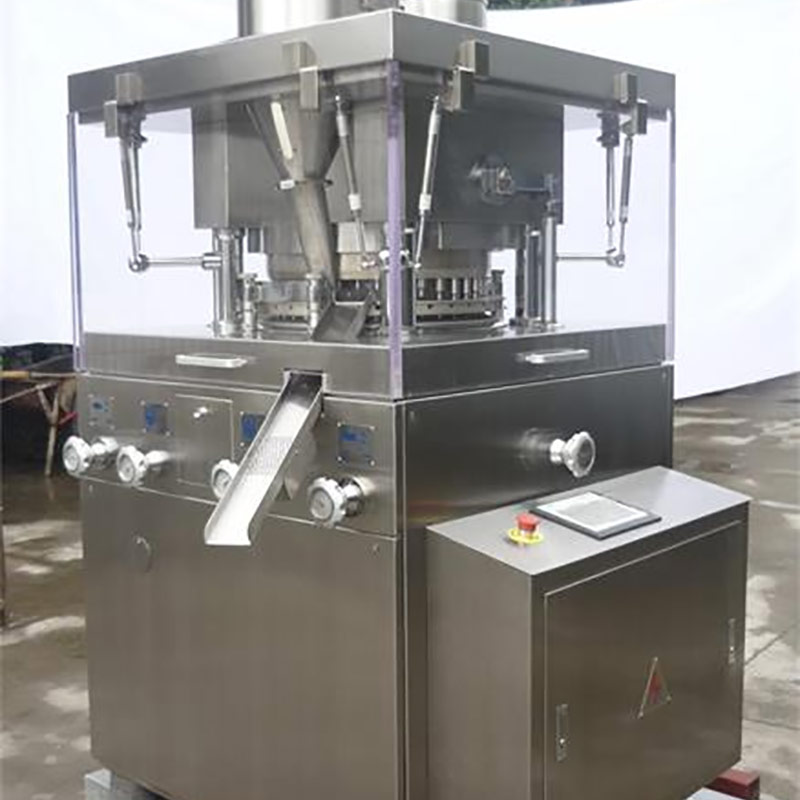

This machine is a single-press/doule-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.

Feature:

This machine integrates automatic rotation, frequency-conversion, speed-adjusting with continuous tablet-pressing.

2). This machine applies to the pressing of granular material of which powder content(over100 hole) is below 10% and it can’t be used for the pressing of half solid, damp granular. Low melting point, easy damping material and the powder without granulator.

3). this machine can produce round, special-shaped and character-engraved tablets ￠4—12mm（16）. The machine is fully-enclosed, made of stainless steel, meet the G.M.P requirement. It has transparent windows so that press condition can be observed clearly and the windows can be opened.

Cleaning and maintenance is easier.

The machine can press not only round tablets but also different geometrical shape tablets, annular tablets, and the tablets may have the impressed letters on both sides. A power suction unit is attached to take the residual powder during operation so that the blockage powder can be collected and be reused. An overload protection unit is included in the system to avoid the damage of the punches and apparatus.

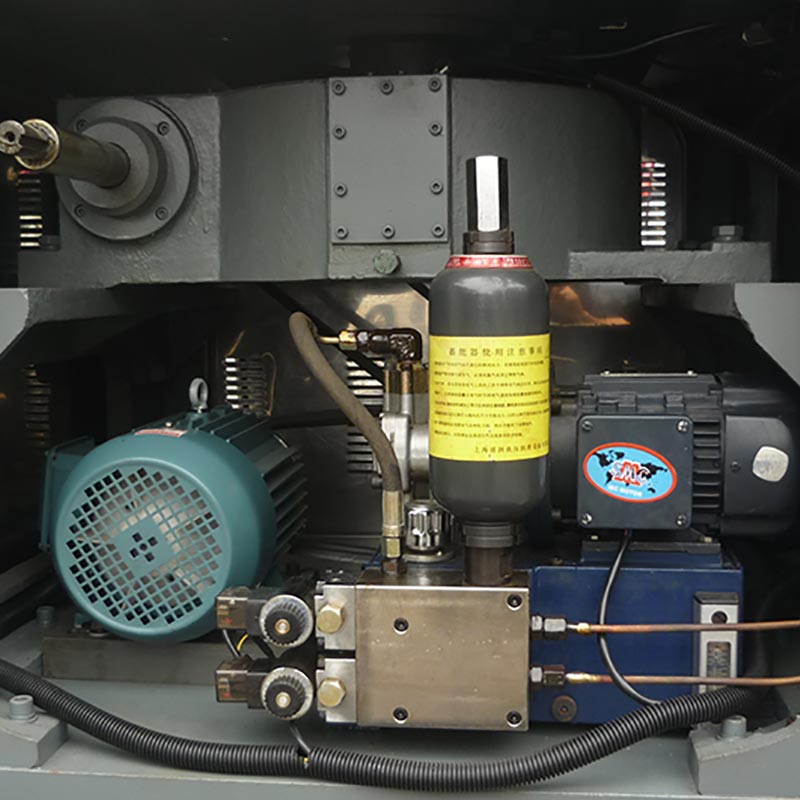

The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution.

rotary tablet press advantages：

1. Guarantees a higher output as high production levels can be achieved with a minimal amount of labor. 2.Two outlets on each side, higher output speed.

3. It reduces wastage of material.

4. It allows independent control of both the weight and hardness of tablets.

Main Technical parameter:
